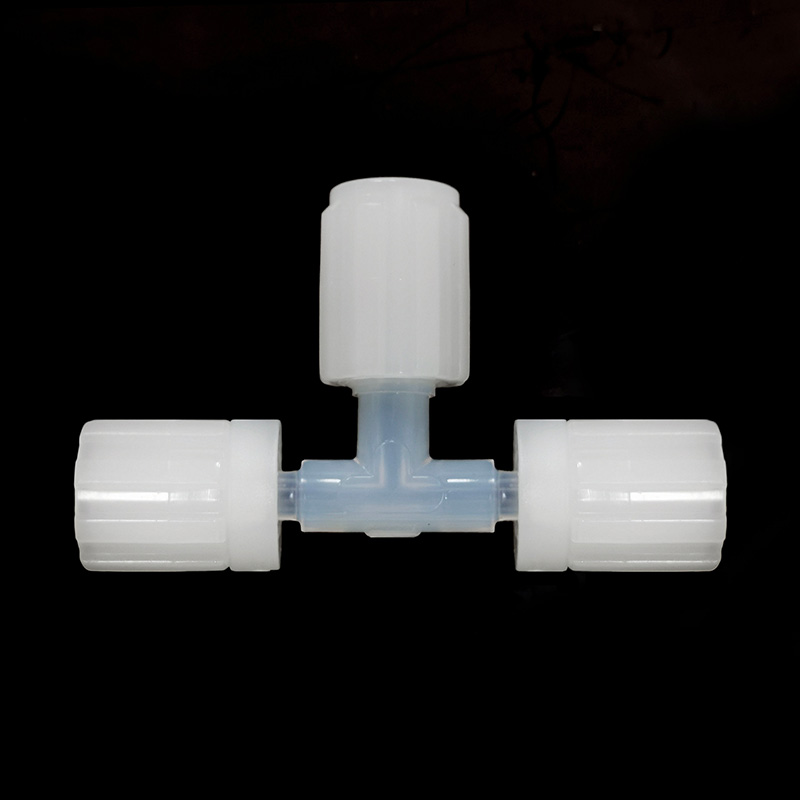

Características: se utiliza especialmente en la industria semiconductora de alta pureza, y también...
Características: se utiliza especialmente en la industria semiconductora de alta pureza, y también...

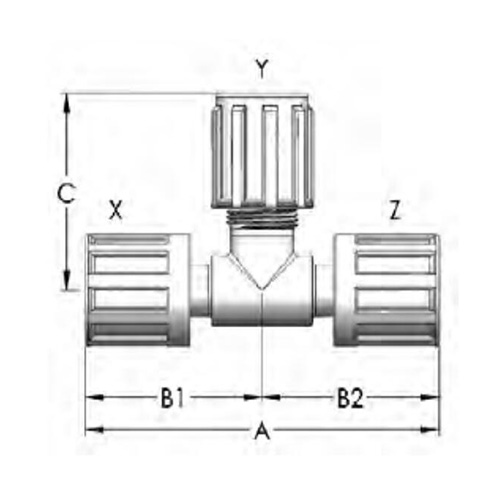

| Parte No. | X (Ahorro de espacio) | Y | Z (Ahorro de espacio) | Orifice | A | B1 | B2 | C |
| (inch) | (inch) | (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| RTS2A04S0404S1 | 1/4" | 1/4" | 1/4" | 3.81mm | 83.31mm | 41.66 mm | 41.66 mm | 42.16mm |
| RTS2A06S0406S1 | 3/8" | 1/4" | 3/8" | 3.81mm | 87.88mm | 43.94mm | 43.94mm | 42.16mm |
| RTS2A06S0606S1 | 3/8" | 3/8" | 3/8" | 6.35 mm | 87.88mm | 43.94mm | 43.94mm | 44.70 mm |
| RTS2A06S0806S1 | 3/8" | 1/2" | 3/8" | 6.35 mm | 87.88mm | 43.94mm | 43.94mm | 47.50 mm |
| RTS2A08S0408S1 | 1/2" | 1/4" | 1/2" | 3.81mm | 93.47mm | 46.74 mm | 46.74 mm | 42.16mm |
| RTS2A08S0808S1 | 1/2" | 1/2" | 1/2" | 9.65mm | 93.47mm | 46.74 mm | 46.74 mm | 47.50 mm |
| RTS2A08S1208S1 | 1/2" | 3/4" | 1/2" | 9.65mm | 93.47mm | 46.74 mm | 46.74 mm | 56.39 mm |
| RTS2A12S0412S1 | 3/4" | 1/4" | 3/4" | 3.81mm | 108.20 mm | 54.10mm | 54.10mm | 42.16mm |
| RTS2A12S0612S1 | 3/4" | 3/8" | 3/4" | 6.35 mm | 108.20 mm | 54.10mm | 54.10mm | 44.70 mm |
| RTS2A12S0812S1 | 3/4" | 1/2" | 3/4" | 9.65mm | 108.20 mm | 54.10mm | 54.10mm | 47.50 mm |
| RTS2A12S1212S1 | 3/4" | 3/4" | 3/4" | 16.00 mm | 108.20 mm | 54.10mm | 54.10mm | 68.58mm |
| RTS2A16S0616S1 | 1" | 3/8" | 1" | 6.35 mm | 139,19 mm | 69.60mm | 69.60mm | 54.10mm |
| RTS2A16S0816S1 | 1" | 1/2" | 1" | 9.65mm | 139,19 mm | 69.60mm | 69.60mm | 57.40mm |
| RTS2A16S1216S1 | 1" | 3/4" | 1" | 16.00 mm | 139,19 mm | 69.60mm | 69.60mm | 56.13mm |
| RTS2A16S1616S1 | 1" | 1" | 1" | 22.35 mm | 139,19 mm | 69.60mm | 69.60mm | 68.58mm |
