Válvula de verificación PTFE - TCVApplicación:Se utiliza especialmente en la industria semiconduc...

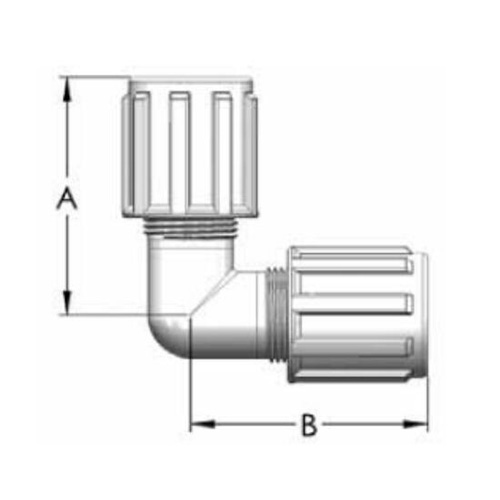

| Parte No. | Tube OD | Orifice | A | B |
| (inch) | (mm) | (mm) | (mm) | |
| UERA06041 | 3/8" 1/4" | 3.81mm | 44.70 mm | 42.16mm |
| UERA08041 | 1/4"*1/2" | 3.81mm | 47.50 mm | 42.16mm |
| UERA08061 | 1/2" 3/8" | 6.35 mm | 44.70 mm | 47.50 mm |
| UERA12041 | 3/4" 1/4"␟0 | 3.81mm | 56.39 mm | 42.16mm |
| UERA12061 | 3/4" 3/8" | 6.35 mm | 56.39 mm | 44.70 mm |
| UERA12081 | 3/4" 1/2 | 9.65mm | 56.39 mm | 47.50 mm |
| UERA16081 | 1"*1/2" | 9.65mm | 68.58mm | 47.50 mm |
| UERA16121 | 1"*3/4" | 16.00 mm | 68.58mm | 56.39 mm |
