Características: se utiliza especialmente en la industria semiconductora de alta pureza, y también...
Reductor de codo de unión PFA - CJUER Características: se utiliza especialmente en la industria de...

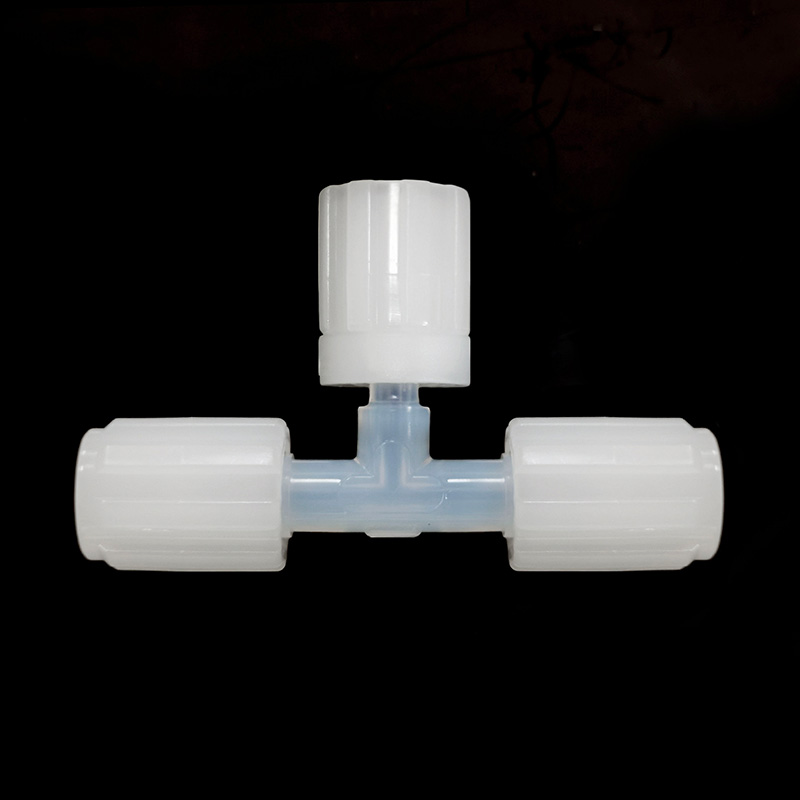

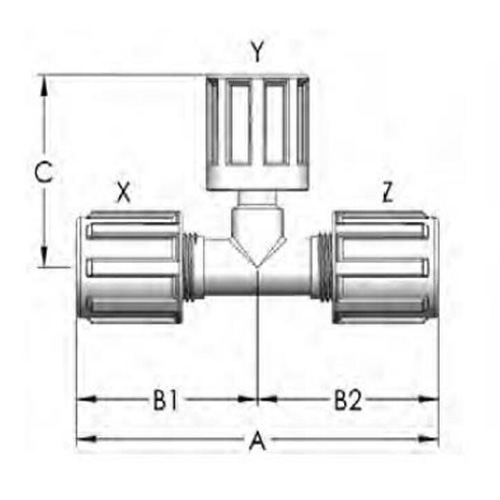

| PArt No. | X | Y (Ahorro de espacio) | Z | Orifice | A | B1 | B2 | C |
| (inch) | (inch) | (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| BTSA0404S041 | 1/4" | 1/4" | 1/4" | 3.81mm | 84.33mm | 42.16mm | 42.16mm | 41.66 mm |
| BTSA0406S041 | 1/4" | 3/8" | 1/4" | 3.81mm | 84.33mm | 42.16mm | 42.16mm | 43.94mm |
| BTSA0604S061 | 3/8" | 1/4" | 3/8" | 3.81mm | 89.41mm | 44.70 mm | 44.70 mm | 41.66 mm |
| BTSA0606S061 | 3/8" | 3/8" | 3/8" | 6.35 mm | 89.41mm | 44.70 mm | 44.70 mm | 41.66 mm |
| BTSA0608S061 | 3/8" | 1/2" | 3/8" | 6.35 mm | 89.41mm | 44.70 mm | 47.50 mm | 46.74 mm |
| BTSA0804S081 | 1/2" | 1/4" | 1/2" | 3.81mm | 95.00 mm | 47.50 mm | 47.50 mm | 41.66 mm |
| BTSA0808S041 | 1/2" | 1/2" | 1/4" | 3.81mm | 89.66mm | 47.50 mm | 42.16mm | 46.74 mm |
| BTSA0808S061 | 1/2" | 1/2" | 3/8" | 6.35 mm | 92,20 mm | 47.50 mm | 44.70 mm | 46.74 mm |
| BTSA0808S081 | 1/2" | 1/2" | 1/2" | 9.65mm | 95.00 mm | 47.50 mm | 47.50 mm | 46.74 mm |
| BTSA0812S081 | 1/2" | 3/4" | 1/2" | 9.65mm | 95.00 mm | 47.50 mm | 47.50 mm | 54.10mm |
| BTSA1204S121 | 3/4" | 1/4" | 3/4" | 3.81mm | 112.78mm | 56.39 mm | 56.39 mm | 41.66 mm |
| BTSA1206S121 | 3/4" | 3/8" | 3/4" | 6.35 mm | 112.78mm | 56.39 mm | 56.39 mm | 43.94mm |
| BTSA1208S081 | 3/4" | 1/2" | 1/2" | 9.65mm | 103.89mm | 56.39 mm | 47.50 mm | 46.74 mm |
| BTSA1208S121 | 3/4" | 1/2" | 3/4" | 9.65mm | 112.78mm | 56.39 mm | 56.39 mm | 50.04mm |
| BTSA1212S121 | 3/4" | 3/4" | 3/4" | 16.00 mm | 112.78mm | 56.39 mm | 56.39 mm | 54.10mm |
| BTSA1216S121 | 3/4" | 1" | 3/4" | 16.00 mm | 112.78mm | 56.39 mm | 56.39 mm | 69.60mm |
| BTSA1608S161 | 1" | 1/2" | 1" | 9.65mm | 137,16 mm | 68.58mm | 68.58mm | 53.09 mm |
| BTSA1612S161 | 1" | 3/4" | 1" | 16.00 mm | 137,16 mm | 68.58mm | 68.58mm | 56.64mm |
| BTSA1616S161 | 1" | 1" | 1" | 22.35 mm | 137,16 mm | 68.58mm | 68.58mm | 69.60mm |
