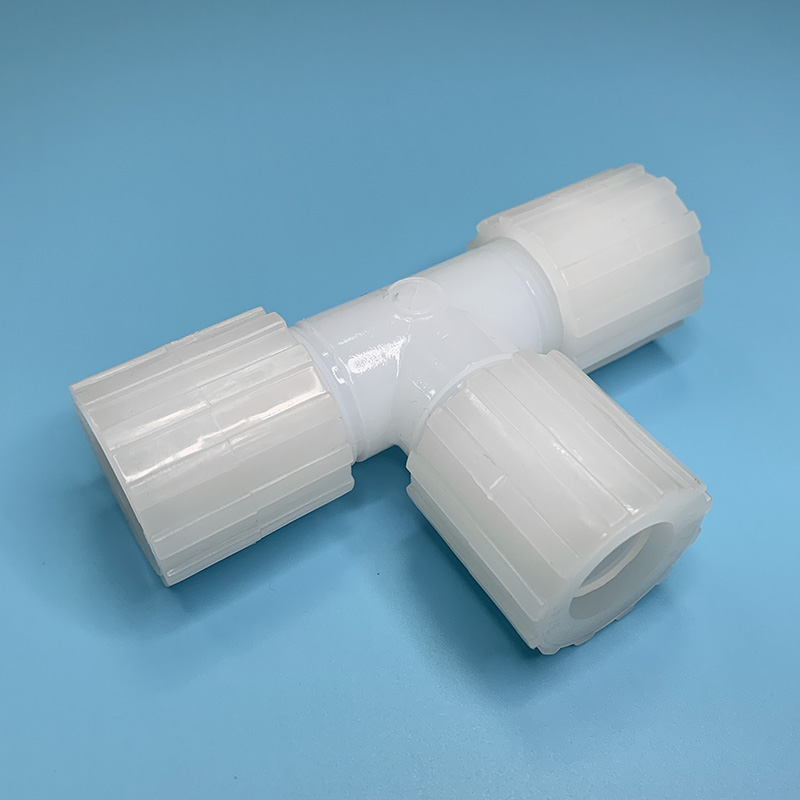

Tee de unión PFA - CJUT: especialmente para la industria de semiconductores de alta pureza, agua ul...
Características: se utiliza especialmente en la industria semiconductora de alta pureza, y también...

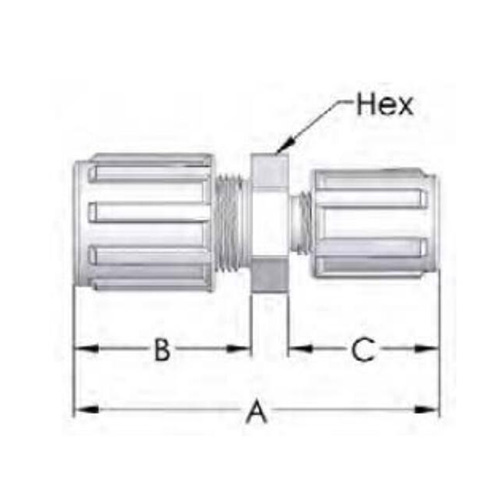

| Parte No. | Tube OD | Orifice | A | B | C | Hex |
| (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| SURA06041 | 3/8"*1/4" | 3.81mm | 69.09mm | 32.26mm | 29.46 mm | 17.46 mm |
| SURA08041 | 1/2"*1/4" | 3.81mm | 71.63mm | 34.54mm | 29.46 mm | 23.81 mm |
| SURA08061 | 1/2"*3/8" | 6.35 mm | 74,17 mm | 34.54mm | 32.26mm | 23.81 mm |
| SURA12041 | 3/4"*1/4" | 3.81mm | 75,18 mm | 38.61 mm | 29.46 mm | 30,16 mm |
| SURA12061 | 3/4"*3/8" | 6.35 mm | 77.98mm | 38.61 mm | 32.26mm | 30,16 mm |
| SURA12081 | 3/4"*1/2" | 9.65mm | 80.52mm | 38.61 mm | 34.54mm | 30,16 mm |
| SURA16081 | 1"*1/2" | 9.65mm | 85,85 mm | 43.91mm | 34.54mm | 36.51 mm |
| SURA16121 | 1"*3/4" | 16.76 mm | 89.66mm | 43.91mm | 34.54mm | 36.51 mm |
