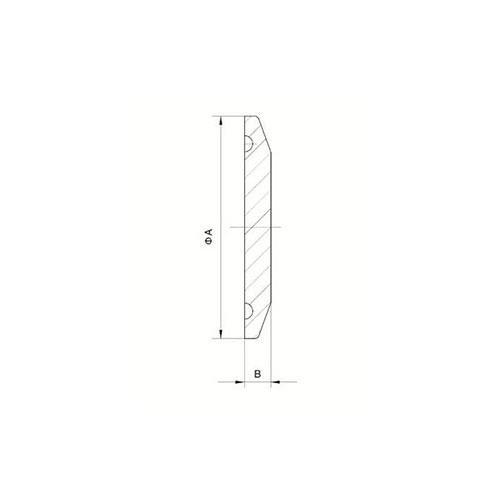

Blank Ferrule
TC-BF
Part no. |
Size |
A |
B |
||
3A |
DIN |
ISO1127 |
|||
TC-BF025 |
1/2"-3/4" |
- |
- |
25.2 |
6.4 |
TC-BF034 |
DN10-20 |
DN17.2-21.3 |
34 |
6.4 |
|
TC-BF050 |
1"-1 1/2" |
DN25-40 |
DN26.9-42.4 |
50.5 |
6.4 |
TC-BF064 |
2" |
DN50 |
48.3 |
64.0 |
6.4 |
TC-BF078 |
2-1/2" |
- |
60.3 |
77.5 |
6.4 |
TC-BF091 |
3" |
DN65 |
76.1 |
91.0 |
6.4 |
TC-BF106 |
- |
DN80 |
88.9 |
106.0 |
7.9 |
TC-BF119 |
4" |
DN100 |
- |
119.0 |
7.9 |
TC-BF130 |
- |
- |
114.3 |
130.0 |
7.9 |
TC-BF155 |
- |
DN125 |
139.7 |
155.0 |
11.1 |
TC-BF167 |
6" |
- |
- |
166.8 |
11.1 |
TC-BF183 |
- |
DN150 |
168.3 |
183.0 |
11.1 |
TC-BF218 |
8" |
- |
- |
217.7 |
11.1 |
TC-BF234 |
- |
DN200 |
219.1 |
233.5 |
11.1 |
TC-BF269 |
10" |
- |
- |
268.5 |
11.1 |
TC-BF319 |
12" |
- |
- |
319.3 |
11.1 |
