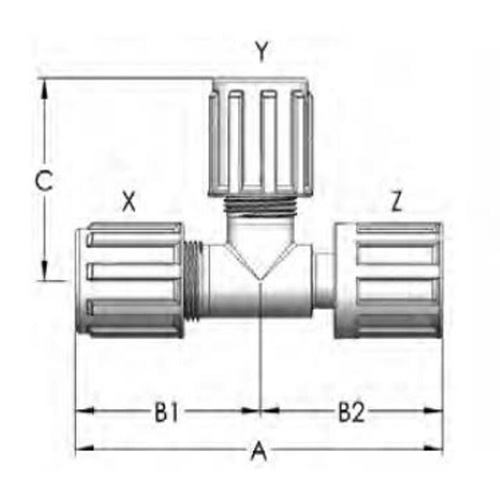

| Parte No. | X | Y | Z (Ahorro de espacio) | Orifice | A | B1 | B2 | C |
| (inch) | (inch) | (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| RTS1A040404S1 | 1/4" | 1/4" | 1/4" | 3.81mm | 83.82mm | 42.16mm | 41.66 mm | 42.16mm |
| RTS1A040808S1 | 1/4" | 1/2" | 1/2" | 3.81mm | 88.90mm | 42.16mm | 46.74 mm | 47.50 mm |
| RTS1A060406S1 | 3/8" | 1/4" | 3/8" | 3.81mm | 88.65mm | 44.70 mm | 43.94mm | 42.16mm |
| RTS1A060606S1 | 3/8" | 3/8" | 3/8" | 6.35 mm | 88.65mm | 44.70 mm | 43.94mm | 44.70 mm |
| RTS1A060608S1 | 3/8" | 3/8" | 1/2" | 6.35 mm | 91.44mm | 44.70 mm | 46.74 mm | 44.70 mm |
| RTS1A060808S1 | 3/8" | 1/2" | 1/2" | 6.35 mm | 91.44mm | 44.70 mm | 46.74 mm | 47.50 mm |
| RTS1A0612S1 | 3/8" | 3/4" | 3/4" | 6.35 mm | 98.81 mm | 44.70 mm | 54.10mm | 56.39 mm |
| RTS1A080408S1 | 1/2" | 1/4" | 1/2" | 3.81mm | 94.23mm | 47.50 mm | 46.74 mm | 42.16mm |
| RTS1A080606S1 | 1/2" | 3/8" | 3/8" | 6.35 mm | 91.44mm | 47.50 mm | 43.94mm | 44.70 mm |
| RTS1A080608S1 | 1/2" | 3/8" | 1/2" | 6.35 mm | 94.23mm | 47.50 mm | 46.74 mm | 44.70 mm |
| RTS1A080806S1 | 1/2" | 1/2" | 3/8" | 6.35 mm | 91.44mm | 47.50 mm | 43.94mm | 47.50 mm |
| RTS1A080808S1 | 1/2" | 1/2" | 1/2" | 9.65mm | 94.23mm | 47.50 mm | 43.94mm | 47.50 mm |
| RTS1A080812S1 | 1/2" | 1/2" | 3/4" | 9.65mm | 101.60mm | 47.50 mm | 54.10mm | 47.50 mm |
| RTS1A120412S1 | 3/4" | 1/4" | 3/4" | 3.81mm | 110.49mm | 56.39 mm | 54.10mm | 42.16mm |
| RTS1A120612S1 | 3/4" | 3/8" | 3/4" | 6.35 mm | 110.49mm | 56.39 mm | 54.10mm | 44.70 mm |
| RTS1A120812S1 | 3/4" | 1/2" | 3/4" | 9.65mm | 110.49mm | 56.39 mm | 54.10mm | 47.50 mm |
| RTS1A121208S1 | 3/4" | 3/4" | 1/2" | 9.65mm | 103,12 mm | 56.39 mm | 46.74 mm | 56.39 mm |
| RTS1A1212S1 | 3/4" | 3/4" | 3/4" | 16.00 mm | 110.49mm | 56.39 mm | 54.10mm | 56.39 mm |
| RTS1A160416S1 | 1" | 1/4" | 1" | 16.00 mm | 138,18 mm | 68.58mm | 69.60mm | 51.31mm |
| RTS1A160616S1 | 1" | 3/8" | 1" | 6.35 mm | 138,18 mm | 68.58mm | 69.60mm | 54.10mm |
| RTS1A160816S1 | 1" | 1/2" | 1" | 9.65mm | 138,18 mm | 68.58mm | 69.60mm | 57.40mm |
| RTS1A161216S1 | 1" | 3/4" | 1" | 16.00 mm | 138,18 mm | 68.58mm | 69.60mm | 56.39 mm |
| RTS1A161612S1 | 1" | 1" | 3/4" | 16.00 mm | 125.48mm | 68.58mm | 69.60mm | 68.58mm |
| RTS1A161616S1 | 1" | 1" | 1" | 22.35 mm | 138,18 mm | 68.58mm | 69.60mm | 68.58mm |
