Características: se utiliza especialmente en la industria semiconductora de alta pureza, y también...
Aplicación: Sistema de suministro de ácido fotovoltaico, contenedores químicos de alta pureza, ga...

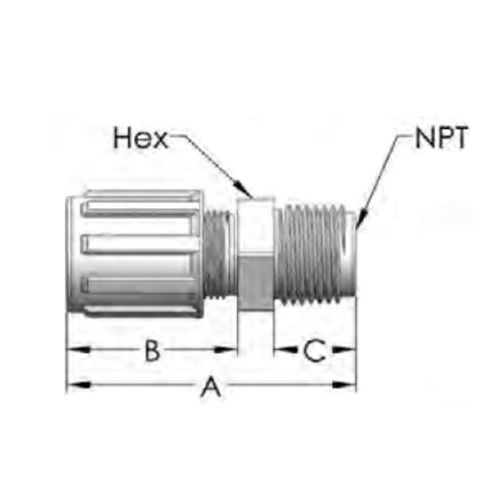

| Parte No. | Tube OD | Thread del TNP | Orifice | A | B | C | Hex |
| (inch) | (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| MCA04021 | 1/4" | 1/8" | 3.81mm | 48.51 mm | 29.46 mm | 11.43 mm | 15.88mm |
| MCA04041 | 1/4" | 1/4” | 3.81mm | 50.80mm | 29.46 mm | 13.97 mm | 15.88mm |
| MCA04061 | 1/4" | 3/8" | 3.81mm | 50.80mm | 29.46 mm | 13.97 mm | 17.46 mm |
| MCA04081 | 1/4" | 1/2" | 3.81mm | 53.85 mm | 29.46 mm | 16.76 mm | 20.64mm |
| MCA06021 | 3/8" | 1/8" | 4.57mm | 53.09 mm | 32.26mm | 13.97 mm | 20.64mm |
| MCA06041 | 3/8" | 1/4” | 6.35 mm | 53.59 mm | 32.26mm | 13.97 mm | 20.64mm |
| MCA06061 | 3/8" | 3/8" | 6.35 mm | 53.59 mm | 32.26mm | 13.97 mm | 20.64mm |
| MCA06081 | 3/8" | 1/2" | 6.35 mm | 56.13mm | 32.26mm | 16.76 mm | 23.81 mm |
| MCA06121 | 3/8" | 3/4” | 6.35 mm | 56.39 mm | 32.26mm | 16.76 mm | 30,16 mm |
| MCA06161 | 3/8" | 1" | 6.35 mm | 60.71mm | 32.26mm | 21.59 mm | 36.51 mm |
| MCA08041 | 1/2” | 1/4” | 7.40 mm | 55.88mm | 34.54mm | 13.97 mm | 23.81 mm |
| MCA08061 | 1/2” | 3/8" | 9.65mm | 55.88mm | 34.54mm | 13.97 mm | 23.81 mm |
| MCA08081 | 1/2” | 1/2" | 9.65mm | 58.93mm | 34.54mm | 16.76 mm | 23.81 mm |
| MCA08121 | 1/2” | 3/4” | 9.65mm | 58.93mm | 34.54mm | 16.76 mm | 30,16 mm |
| MCA08161 | 1/2” | 1" | 9.65mm | 63.75mm | 34.54mm | 21.84 mm | 36.51 mm |
| MCA12061 | 3/4” | 3/8" | 9.65mm | 60,20 mm | 38.61 mm | 14.22 mm | 23.81 mm |
| MCA12081 | 3/4” | 1/2" | 12.95 mm | 62.99mm | 38.61 mm | 17.02 mm | 30,16 mm |
| MCA12121 | 3/4” | 3/4” | 16.00 mm | 62.99mm | 38.61 mm | 17.02 mm | 30,16 mm |
| MCA12161 | 3/4” | 1" | 16.00 mm | 67.56mm | 38.61 mm | 21.59 mm | 36.51 mm |
| MCA16081 | 1" | 1/2" | 12.95 mm | 68.33mm | 43.94mm | 17.02 mm | 36.51 mm |
| MCA16121 | 1" | 3/4” | 16.76 mm | 68.33mm | 43.94mm | 17.02 mm | 36.51 mm |
| MCA16161 | 1" | 1" | 22.35 mm | 73.15 mm | 43.94mm | 21.84 mm | 36.51 mm |
